Life saving purity

When no safe drinking water is available,
the Smartbox© is the ultimate solution.
Water purification from nearly every source, as ponds, rivers and lakes.

  • Water quality meets WHO standards
  • Safe water in remote areas
  • Optimal rejection of bacteria and viruses
  • Engineered by water experts
  • User friendly operation
  • Decentralized water units for base camps / emergency hospitals

Smart. Reliable. Sustainable.

Smartbox®, a lifesaving solution for rescuers, servicemen and survivalists all over the world. The Smartbox© is a portable watertreatment unit, based on membrane technology and smart engineering. Where other systems clog, the Smartbox® will always deliver, due to the smart flux regulator.

No direct need for external power sources: the Smartbox® is able to supply up to 20 hours with one, exchangeable battery pack. During purification the foldable solar panel (option) or other external power sources, can recharge the battery.

How to setup the Watermiracles

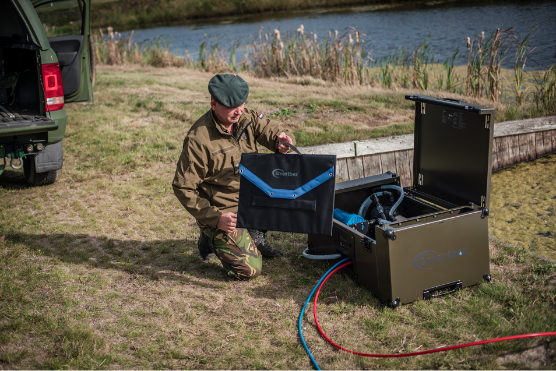

Step 1

Place the Smartbox near the source you want to purify the water from: e.g. lakes, ponds, rivers or water storage tank. Open the Smartbox to read the “Quick manual” on the inside of the cover.

Be sure everything is there: Solar panel which is attached to the inside of the cover, one red hose with strainer, one blue hose, one transparent hose.

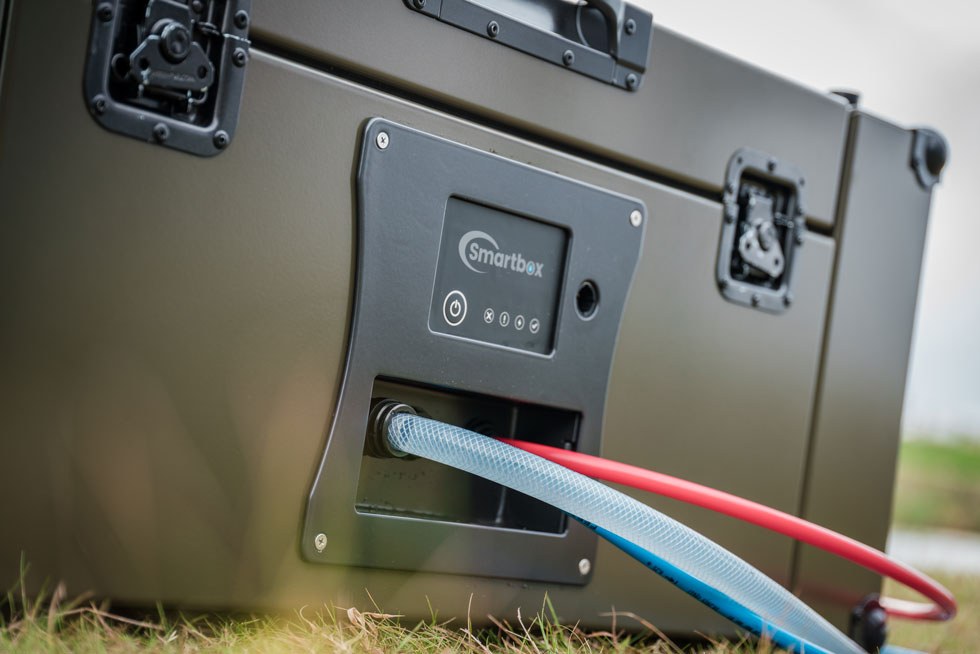

Step 2

Connect the hoses on their specific connection on the Smartbox, based on the colour as indicated at the connection points. The red hose with float and strainer has to be placed in the water source, the transparent hose to the drain. The produced purified water will leave the Smartbox from the blue hose.

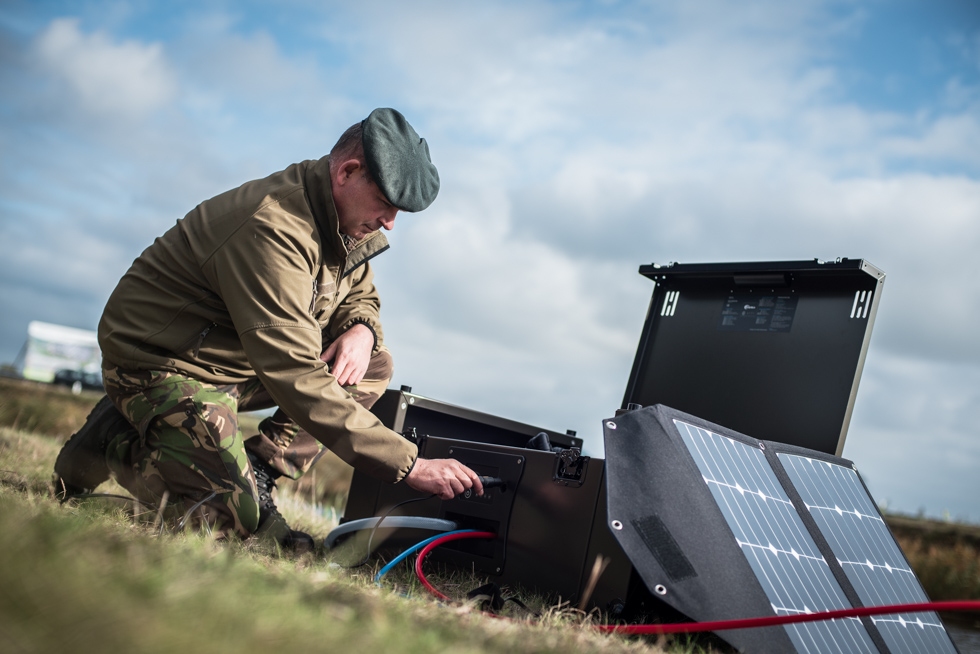

Step 3

Based on the exchangeable battery pack, the Smartbox can be operated without external power source up to 20 hours. The battery can be recharged with the use of the foldable solar panel or other external power sources, which can be connected with one of the supplied adapters to the Smartbox.

Smart connections for external power trough:
12V-24V-110V-230V

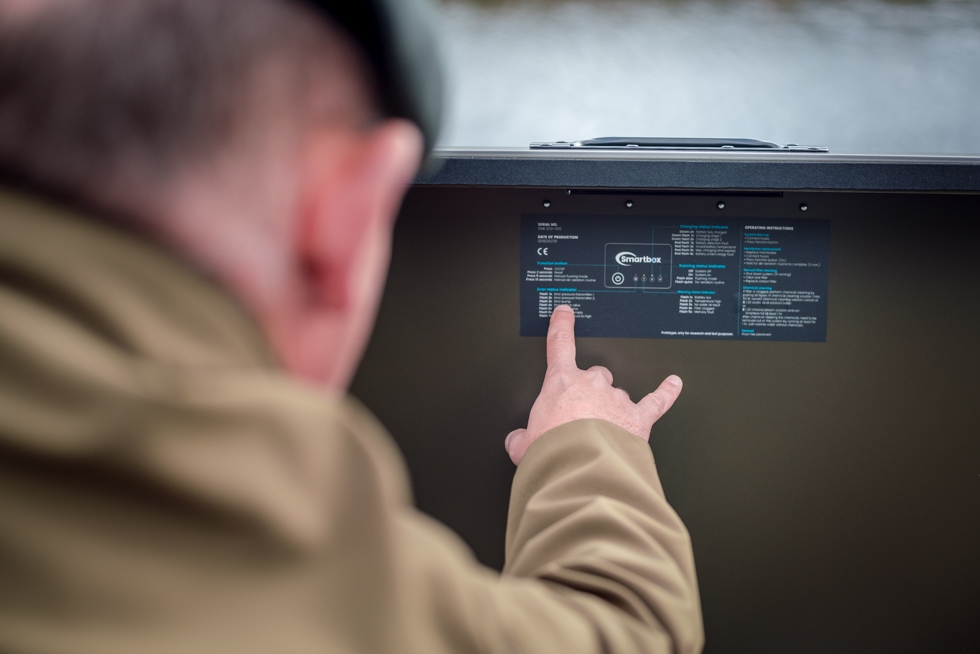

Step 4

The Smartbox can be started by pressing the function button. An automatic de-aeration routine will be started. After the start-up sequence the Smartbox will switch to the production routine. At preset or triggered intervals the Smartbox will automatically perform a hydraulic cleaning of the membrane and pre-filter.

Step 5

Based on the Smart controller, the Smartbox will auto adjusts the performance to the inlet water quality. This controller function ensures the Smartbox system will always deliver, where other systems clog.

Your Smartbox is ready for use!

Specifications:

  • Smart controller, intelligent flux regulation, auto adjusts to inlet water quality
  • Smart power: solar, car adaptor 12V-24V, 110V, 230V, exchangeable battery pack
  • Self-priming pump
  • Auto flushing pre-filter

Technical Data:

  • Dimensions: 1050 x 600 x 400 mm (LxWxH)
  • Weight: 50kgs
  • Power consumption: ca. 25 Watt
  • Inlet hose: 8 Mtrs
  • Max pump suction height: 2 Mtrs
  • Inlet water: Free from oil and grease
